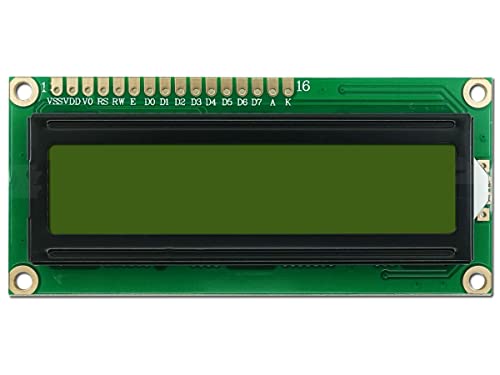

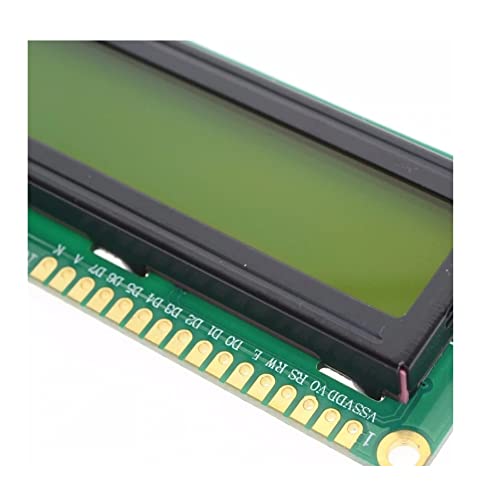

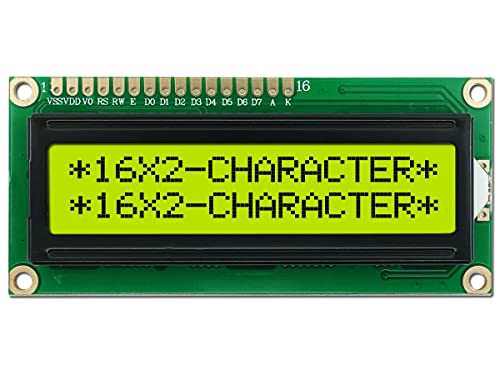

1602A 16x2 LCD ekran, 2x16 karakter, yeşil arka aydınlatma

Ürün açıklaması

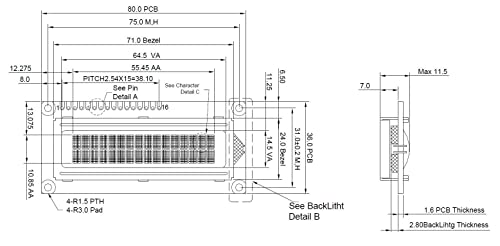

marka: 1602A 16x2 Karakter LCD Yeşil Specification: Gross Weight (kg) 0.0360 Manufacturer EastRising Part Number ERM1602SBS-6 Display Format 16x2 Character Interface 6800 4-bit Parallel , 6800 8-bit Parallel IC or Equivalent AIP31066 , HD44780, KS0066 , SPLC780 , ST7066 Appearance Black on Yellow Green Diagonal Size No Connection Pin Header Outline Dimension 80.0(W)x36.0(H)x11.5(T)mm Visual Area 64.50x14.50mm Active Area 55.45x10.85mm Character Size 2.95x5.15mm Dot (Pixel) Size 0.55x0.50mm Dot (Pixel) Pitch 0.60x0.55mm IC Package COB Display Type STN-LCD Blue Touch Panel Optional No Sunlight Readable No Response Time(Typ) No Contrast Ratio(Typ) No Colors No Viewing Direction 6:00 Viewing Angle Range No Brightness(Typ) No Backlight Color Yellow Green Color Backlight Current (Typ) 15mA Power Supply(Typ) 3.3V, 5V Supply Current for LCM(Max) 1500uA (Vdd=5V),1250uA (Vdd=3.3V) Operating Temperature -20℃~70℃ Storage Temperature -30℃~80℃
